20kva Perkins Diesel Water Cooled Generator Electric Power 16kw Silence Genset 3 Phase

Place of Origin Jiangsu of China
Nama merek Power Friend
Sertifikasi ISO,CE Certification
Model Number PF-P20
Minimum Order Quantity 1 SET
Harga Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Detail produk
Output Power 16KW 20KVA Frequency 50/60HZ
Voltage 220v - 690v optional Engine Perkins
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional Controller Deepsea, Smartgen, Harsen for optional
MCCB ABB or Delixi Cooling system Water cooled
Genset type Open type, Silent type, Container type, Trailer type for optional ATS Optional
Cahaya Tinggi

open type genset

,

water cooled generator

Tinggalkan pesan
Deskripsi Produk

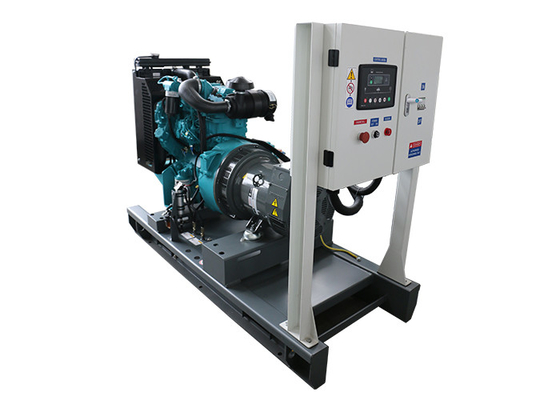

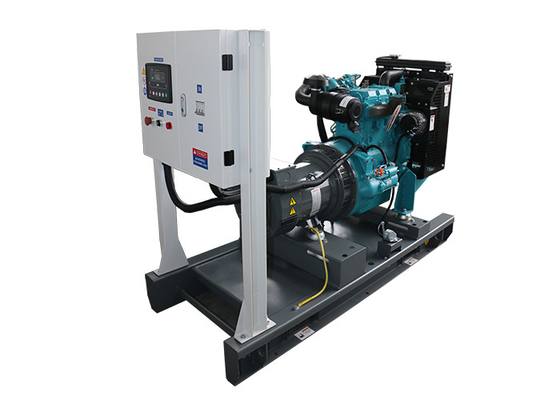

20kva Perkins Diesel Generator Electric Power 16kw Silence Genset 3 phase

Technical Specifications:

Genset Prime Power (kw/kva)  16/ 20
Voltage Recovery Time ≤1S
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah

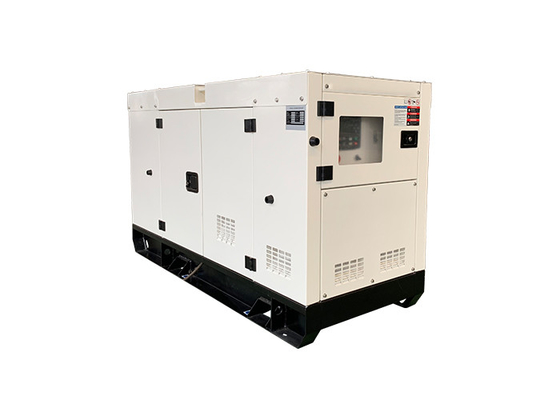

Soundproof Type- Dimension (L*W*H) (mm) 1800*750*1120
Soundproof Type-Weight (kg) 1080
Engine Engine brand/ model Perkins  404A-22G
Output Power (kw)  20
Cylinder No. & Config. 4, in-line
Combustion System Indirect injection
Engine Speed (r/min) 1500
Speed Governing Mechanical
Starting System 12V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Alternator Alternator brand Stamford, Mecc-alte,Faraday…
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%~105%
Protection Grade IP23
 Heavy duty world class brand  industrial diesel engine:

a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards




ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.







 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours

. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
. Spare-parts can also be sent by air express.


If have any questions, please contact us. Your inquiry would be appreciated.
