Name: 160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator
Brand: GPRO
SKU: PF-DC220
Price: 10400 USD
Availability: InStock
Rating: 4.9 (190 reviews)

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Output Power: 160KW

Frequency: 50/60HZ

Voltage: 220v - 690v optional

Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional

Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional

Controller: Deepsea, Smartgen, Harsen for optional

MCCB: ABB or Delixi

Cooling system: Water cooled

Genset type: Open type, Silent type, Container type, Trailer type for optional

ATS: Optional

Cahaya Tinggi:

Cummins diesel genset

darurat diesel generator

Informasi dasar

Place of Origin: Jiangsu of China

Nama merek: GPRO

Sertifikasi: ISO,CE Certification

Model Number: PF-DC220

Syarat-syarat pembayaran & pengiriman

Packaging Details: Plywood or Plastic packing

Delivery Time: 15 - 20 working day

Payment Terms: L/C, T/T

Supply Ability: 300 Set / Month

Galeri

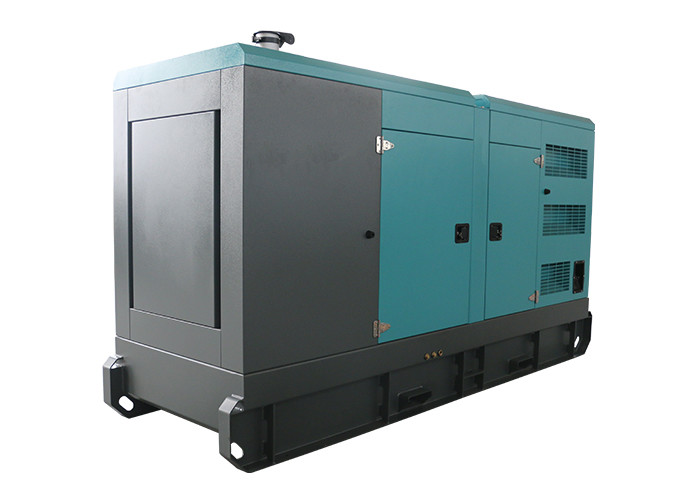

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator

Deskripsi Produk

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator

Model: PF-DC220

Prime Power	200/160 (KVA/KW)
Standby Power	215/172 (KVA/KW)
Freqency	50HZ
Phase Number	3
Power factor	0.8 COSØ
Rated Voltage	400/230V
Net Weight	1700 KG
Dimention	23949801636mm(lengthwidthheight)
Engine Mode	Cummins 6CTAA8.3-G2
Engine Speed	1500RPM
Fuel Comsuption	45 L/H
Cylinder Number	6
Bore/Stroke	114*135 mm
Capacity	8.3 L
Engine Air Flow	240 m³/min
Exhaust Gas Flow	32.58 m³/min
Exhaust Gas Temperature	640 °c
Total oil capacity	20 L
Total Coolant Capacity	31 L
Alternator model	Leroy Somer LSA46.2L6/Stamford 274H
Starting Mode	24V Electronic
Run Time (50% Load)	10-12 hours
Coupling	SAE Disc-coupling
Phase/Poles	3 Phase 4 Wire
Excitation	Brushless,self-excited, AVR regulation
Insulation System	Class H
Protection Class	IP23

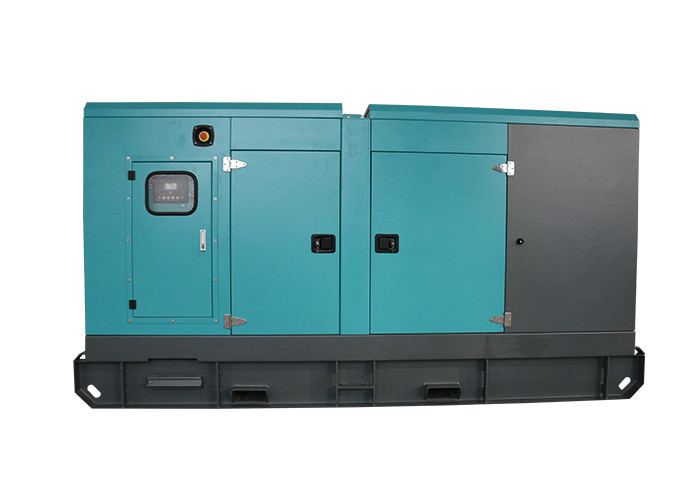

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 0

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

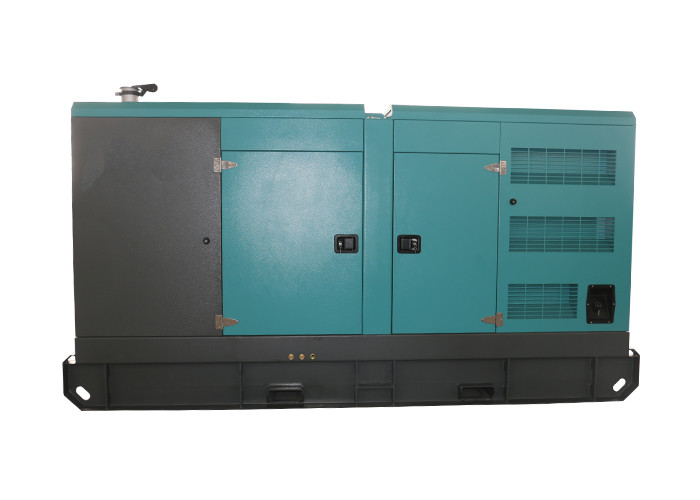

160KW 200KVA Water Cooled Cummins Diesel Generators Super Silent Generator 2
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

If have any questions, please contact us. Your inquiry would be appreciated.
