Super Silent 64dB Perkins Diesel Generator 15kva Key Start 404A-22G Engine

1
MOQ
negotiable
harga
Super Silent 64dB Perkins Diesel Generator 15kva Key Start 404A-22G Engine
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Power(Prime/Standby): 15KVA/12KW
Frequency: 50/60hz
Current: 30A
Voltage: 220v-480v
Engine: UK Perkins diesel motor
Alternator: STAMFORD / MECC
Controller: Deepsea/Smartgen/Harsen / Key start
MCCB: ABB/Delixi
Warranty: One year or 1000hrs
Fuel tank: 8 hours contunuous running
ATS: Optional
Cahaya Tinggi:

water cooled generator

,

open type genset

Informasi dasar
Place of Origin: Wuxi, China
Nama merek: GPRO
Sertifikasi: ISO, CE, CO, CIQ
Model Number: PF-P15S
Syarat-syarat pembayaran & pengiriman
Packaging Details: Plywooden box or plastic poly
Delivery Time: 25 days after advance payment
Payment Terms: T/T or L/C
Supply Ability: 300 SETS/ Month
Deskripsi Produk

15KVA -Super silent Perkins diesel generator specification :



PERKINS ENGINE:



Original UK diesel engine brand.
Euro standard production , strict quality control.
Some model engines approval EPA TIER 4 and Euro stage III emission requirement



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-P15S
1.2 Prime at 50HZ, 40℃ ambient 12KW 15KVA
1.3 Standby at 50HZ, 40℃ ambient 13KW18KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2100×850×1300mm
1.7 Weight 700kg
1.8 Fuel consumption 100% prime load 5,4 l/hr
1.9 Noise Level at 7 (Normal/Super) 75/65dB
1.1 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Perkins
2.2 Engine Model 404A-22G
2.3 Governor/Class Mechanical
2.4 Cylinder NO. 4
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern Indirect injection
2.7 Aspiration Naturally
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 84×100mm
2.1 Compression ratio 23·3 : 1
2.11 Displacement 2.216L
2.12 Engine Prime Power at 1500rpm 18.4KWm
2.13 Engine Standby Power at 1500rpm 20.3KWm
2.14 Start-up mode 12V, electric
2.15 Starting/Min temperature /
2.16 Lubricating oil consumption Lubricating oil consumption less than 10% Fuel consumption
2.17 Lubrication oil capacity 10,6 litres
2.18 Coolant capacity – radiator and engine (40℃) 6,98 litres
2.19 Exhaust temp – full load prime 445°C
2.2 Exhaust gas flow – full load prime 3,64m³/min
2.21 Exhaust gas back pressure max 10,2 kPa
2.22 Air flow – radiator (40℃ ambient) /
2.23 Air intake – engine– full load prime 1,45m³/min
2.24 Standard Air intake temp 25℃
2.25 Fuel type #0 Diesel (Natural temperature)
2.26 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.27 Exhaust system Adopt industrial high efficiency silencer and flexible bellows
2.28 Engine derating – altitude Above the sea-level 1525m high, a fall of 4% from a rise of 300m.
2.29 Engine derating – temperature Above the ambient temperature 40℃ high, a fall of 2% from a rise of 11%.
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model PI 144D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.1 Phase & wires 3 phase 12 wires
3.11 Rated currency 25.3A
3.12 Efficiency 0.842
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 15℃
3.19 Max. altitude 1000m
3.2 Weight 133Kg



Description:

1.    Power: 15KVA/12KW

2.    Engine: Original UK Perkins motor

3.    Alternator: Genuine Stamford

4.    Controller: Deepsea or Smartgen with or without AMF. Options: Key start model

5.    ATS is optional

6.    Type: Super silent generator , 64dB at 7 meters, 71 dB at 1 meter.

7.    Color: Can be customized



Applications:



1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6.    Standby power or main power, indoor or outdoor using.

7. Rental field.



Competitive Advantage:



1.    Full power range 10kva to 2000kva.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.

10.  Approval EURO emission standard and USA EPA emission standard.

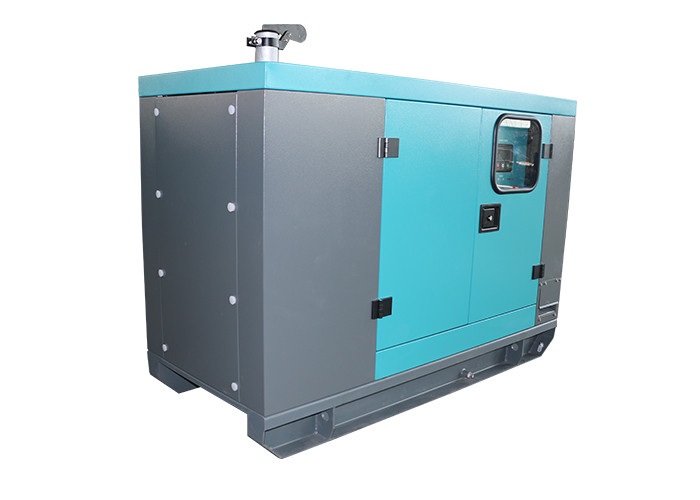

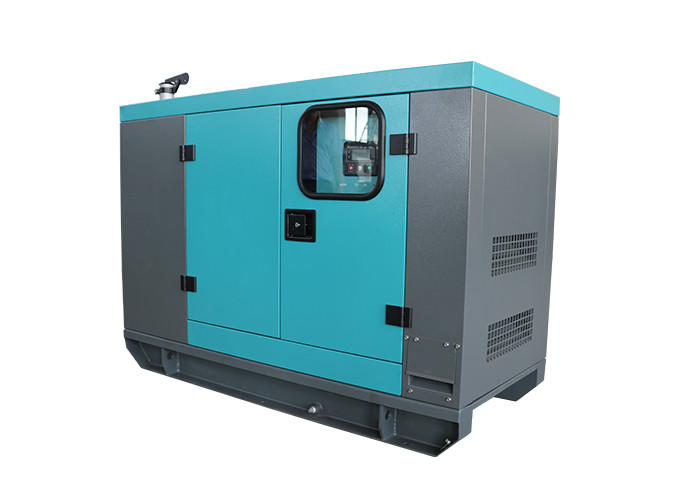

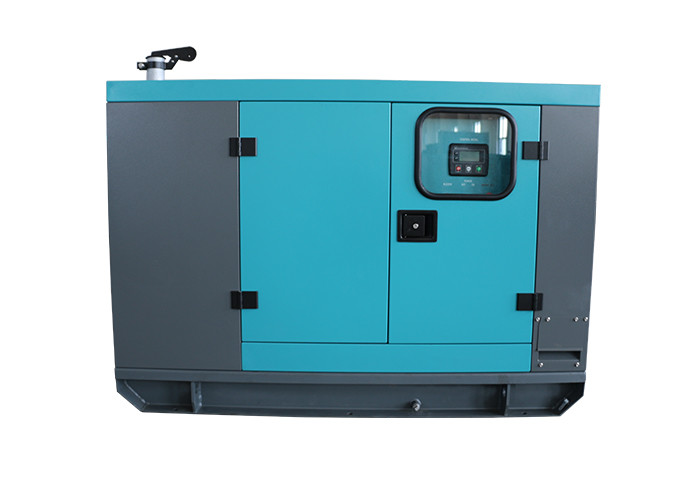

Super silent generators photos:
