Soundproof 40 Kw Cummins Diesel Generators 50kva Used Standby Generator Set

1 SET
MOQ
Negotiation
harga
Soundproof 40 Kw Cummins Diesel Generators 50kva Used Standby Generator Set
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Output Power: 40kw
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
Cahaya Tinggi:

Cummins Power Generator

,

darurat diesel generator

Informasi dasar
Place of Origin: Jiangsu of China
Nama merek: GPRO
Sertifikasi: ISO,CE Certification
Model Number: PF-DC55
Syarat-syarat pembayaran & pengiriman
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Deskripsi Produk



Prime Power

50/40(KVA/KW)

Standby Power

56/45 (KVA/KW)

 Freqency

50HZ

Phase number

3

Power factor

0.8 COSØ

Rated Voltage

380/220V

Net Weight

 1050 KG

Dimention

2200*850*1050mm (l*w*h)

Engine Mode

 Cummins  4BTA3.9-G2

Engine Speed

1500RPM

Noise Level

68 dB(A)/7m

Cylinders

4

Bore/Stroke

102*120mm

Cooling

Water cooled

Cubic Capacity

3.9L

Fuel tank Capacity

65L

Fuel Comsuption

   ≤210g/kwh

Alternator model

Stamford UCI224D

Starting Mode

 Electric Starter

Run Time (50% Load)

10-12 hours

Coupling

SAE Disc-coupling

Phase/Poles

3 Phase 4 Wire

Excitation

Brushless,self-excitation(AVR)

Insulation System

Class H

Protection Class

IP23

Cummins / Stamford Genset Features:

1. Engine: Cummins industrial diesel engine

2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard

3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems

4. Control Panel: Digital auto-start LED panel

5. Shakeproof: Anti Vibration Suspension Absorber

6. Safe Filter: Dry type air filter, fuel filter, oil filter

7. Breaker: Mould case circuit breaker

8. Power: 24V DC start motor and storage battery

9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

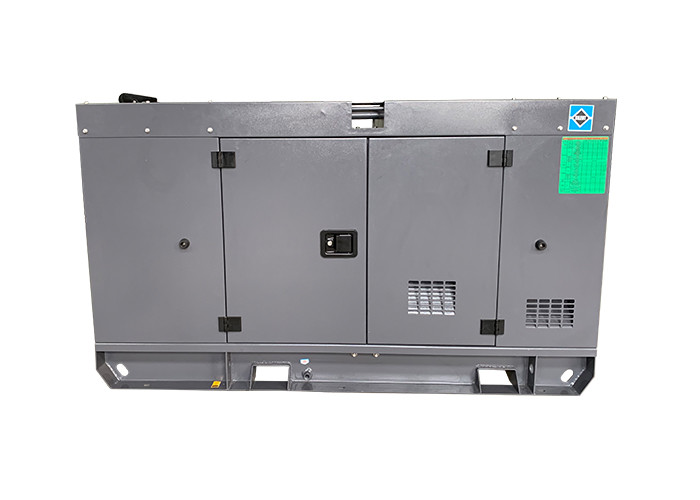

Soundproof 40 Kw Cummins Diesel Generators 50kva Used Standby Generator Set 0

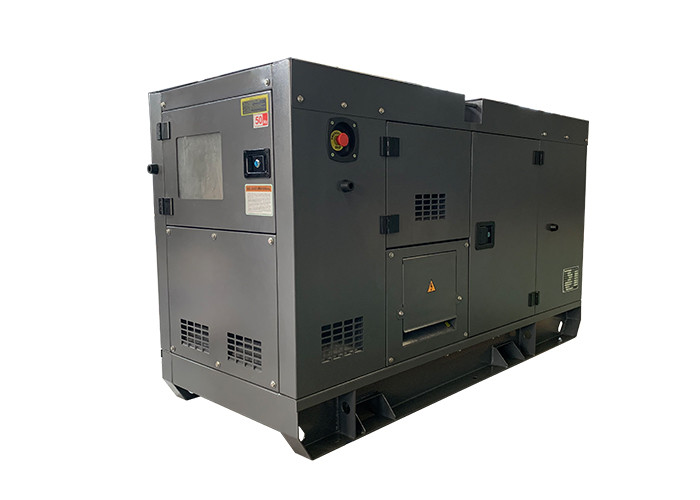

Soundproof 40 Kw Cummins Diesel Generators 50kva Used Standby Generator Set 1

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running

automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.

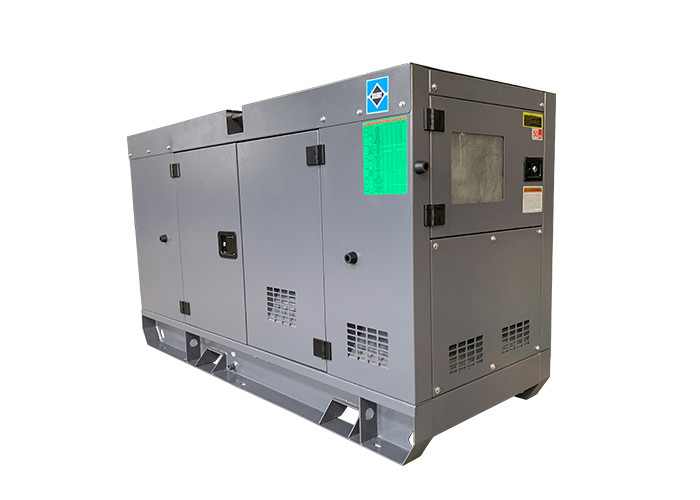

Soundproof 40 Kw Cummins Diesel Generators 50kva Used Standby Generator Set 2



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.

Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

If you are interested, please contact with us at any time!
