UK Perkins Diesel Generator 250KVA 200kw Europe genset high temperature resistance

1 SET
MOQ
Negotiation
harga
UK Perkins Diesel Generator 250KVA 200kw Europe genset high temperature resistance
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Output Power: 200KW 250KVA
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled

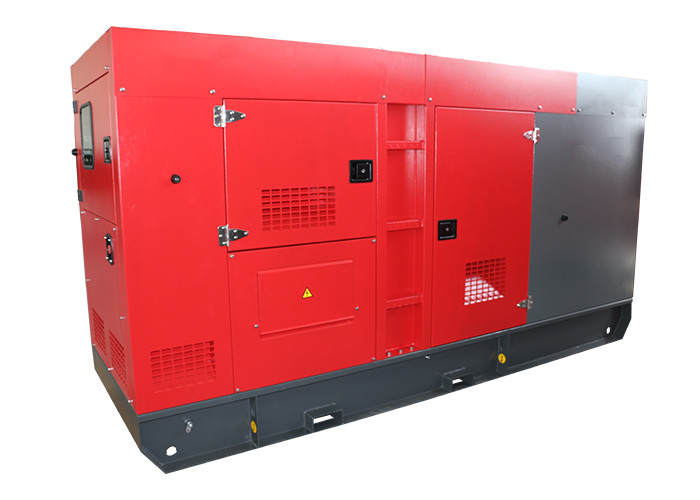

Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
Cahaya Tinggi:

open type genset

,

water cooled generator

Informasi dasar
Place of Origin: Jiangsu of China
Nama merek: GPRO
Sertifikasi: ISO,CE Certification
Model Number: PF-P275
Syarat-syarat pembayaran & pengiriman
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Deskripsi Produk

UK Perkins Diesel Generator 250KVA 200kw Europe genset high temperature resistance

Technical data

Genset Model

PF-P275

 Prime Power

200KW/250KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

3000*1000*1700

Genset weight (kg)

2100

Diesel Engine

Brand

 PERKINS

Model

1106A-44TAG2

Number of Cylinders

6

Rotating Speed

1500RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

116*136

Displacement(L)

8.7

Lubricating Capacity(L)

28.3

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

220g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Stamford

Model

UCI 274H

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP23

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

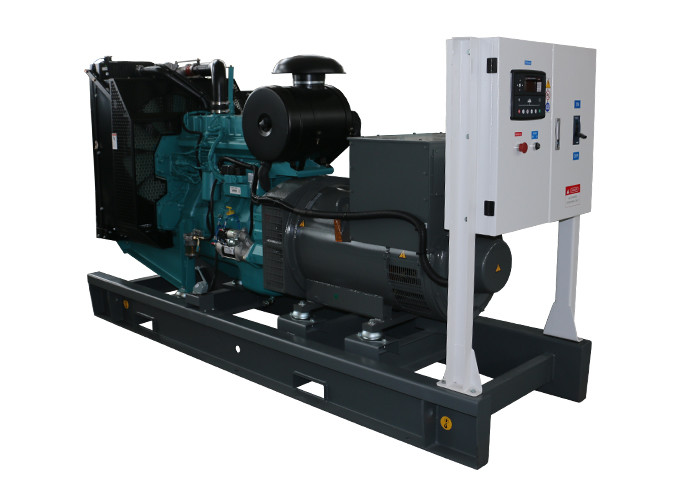

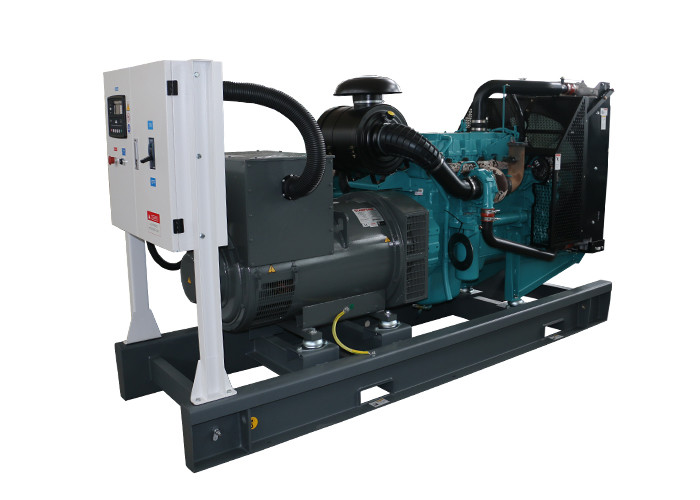

The components of the genset

(1)  PERKINS Diesel Engine;        (2) Stamford  Alternator;     (3) Control Panel

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.



Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards




UK Perkins Diesel Generator 250KVA 200kw Europe genset high temperature resistance 0



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
