250KVA / 200KW perkins diesel generator with Stamford alternator

1
MOQ
negotiable
harga
250KVA  / 200KW perkins diesel generator with Stamford alternator
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Power(Prime/Standby): 250KVA /200KW
Frequency: 50/60hz
Current: 500A
Voltage: 220v-480v
Engine: Original UK Perkins diesel engine
Alternator: original Stamford / Mecc Alte
Controller: Deepsea/Smartgen/Harsen
MCCB: ABB/Delixi
Warranty: One year or 1000hrs
Fuel tank: 10 hours at 100% loading
ATS: Optional
Cahaya Tinggi:

open type genset

,

water cooled generator

Informasi dasar
Place of Origin: Wuxi city, China
Nama merek: GPRO
Sertifikasi: ISO, CE, PVOC
Model Number: PF-P275
Syarat-syarat pembayaran & pengiriman
Packaging Details: Plywooden box or plastic poly
Delivery Time: 25-30 days after advance payment
Payment Terms: T/T or L/C
Supply Ability: 500pcs/ Month
Deskripsi Produk


250KVA Perkins generator specification:

1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-P275
1.2 Prime at 50HZ, 40℃ ambient 200KW 250KVA
1.3 Standby at 50HZ, 40℃ ambient 220KW 275KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 3330×1250×1850mm
1.7 Weight 3240kg
1.8 Fuel consumption 100% prime load 55,6 l/hr
1.9 Noise Level at 7 (Normal/Super) 75/65dB
1.10 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Perkins
2.2 Engine Model 1306C-E87TAG6
2.3 Governor/Class Electronic
2.4 Cylinder NO. 6
2.5 Engine build Vertical in-line
2.6 Fuel spray pattern direct injection
2.7 Aspiration Air to air charged cooled, turbocharged
2.8 Cooling mode Radiator cooled (enclose water)
2.9 Bore and stroke 116.6x135.9 mm
2.10 Compression ratio 16·9 : 1
2.11 Displacement 8.7 litres
2.12 Engine Prime Power at 1500rpm 204KWm
2.13 Engine Standby Power at 1500rpm 224KWm
2.14 Start-up mode 12/24V, electric
2.15 Battery capacity /
2.16 Starting/Min temperature /
2.17 Lubricating oil consumption Lubricating oil consumption less than 10% Fuel consumption
2.18 Lubrication oil capacity 26,4 litres
2.19 Coolant capacity – radiator and engine (40℃) 37,2 litres
2.20 Exhaust temp – full load prime /
2.21 Exhaust gas flow – full load prime /
2.22 Exhaust gas back pressure max 10,7 kPa
2.23 Air flow – radiator (40℃ ambient) /
2.24 Pusher fan head (duct allowance) 40℃ /
2.25 Air intake – engine– full load prime /
2.26 Standard Air intake temp 25℃
2.27 Fuel type #0 Diesel (Natural temperature)
2.28 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.29 Exhaust system Adopt industrial high efficiency silencer and flexible bellows
2.30 Engine derating – altitude /
2.31 Engine derating – temperature /
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model UCDI274K
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 360.8A
3.12 Efficiency 0.925
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 740Kg



Description:



1.    Power: 250KVA / 200KW

2.    Engine: UK Perkins origin

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Open type, Soundproof type, Trailer type, Container type, etc

7.    Color: Can be customized

8.    EPA Tier 4 adn Tier 3 certification



Applications:



1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6.    Standby power or main power, indoor or outdoor using.

7.    Rental field.

8.    Power plant



Competitive Advantage:



1.    Full power range.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.

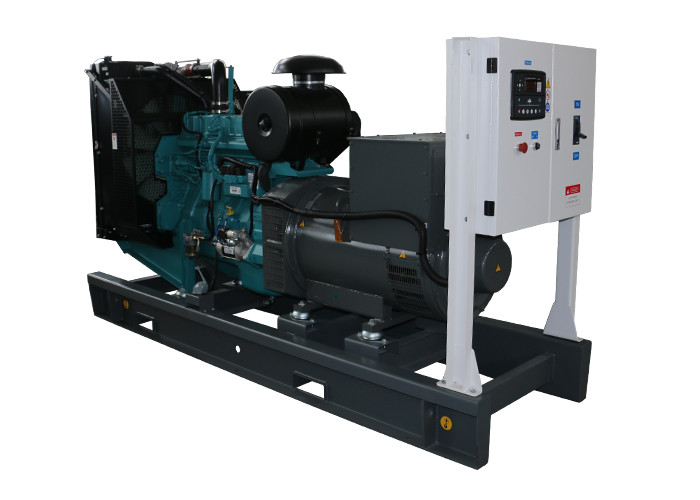

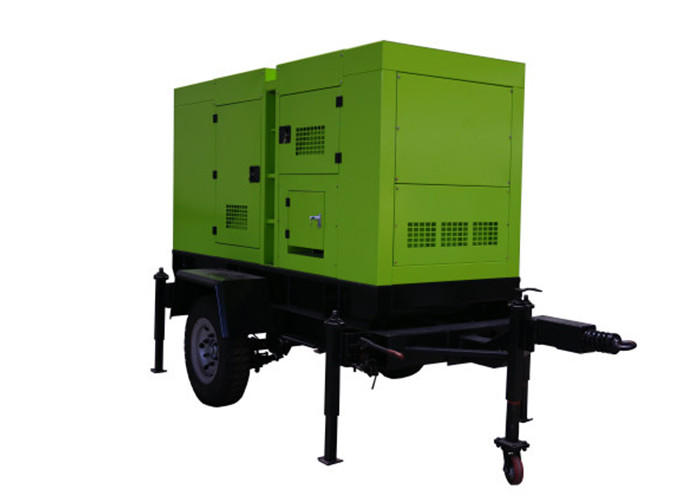

Perkins diesel generator photos for your refernece:



250KVA  / 200KW perkins diesel generator with Stamford alternator 0

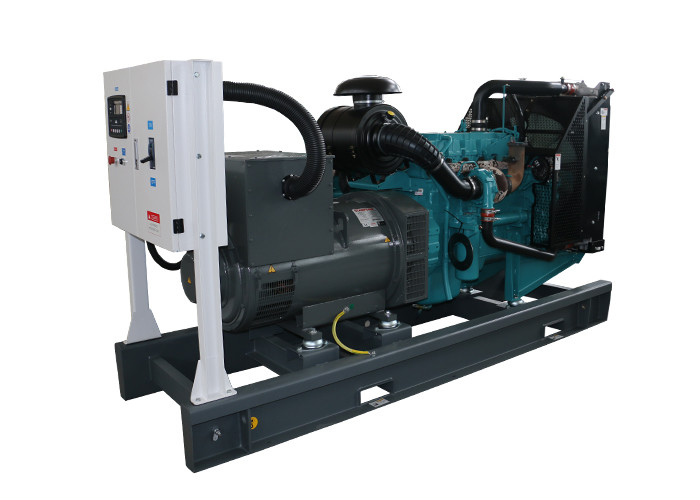

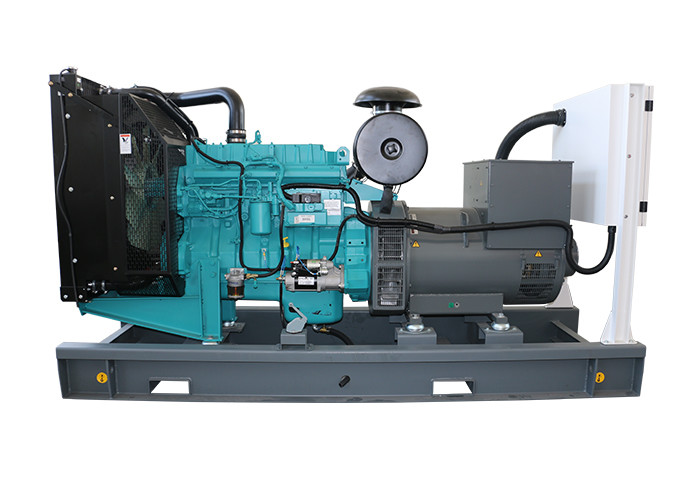

Perkins diesel generator open type photos:

250KVA  / 200KW perkins diesel generator with Stamford alternator 1
